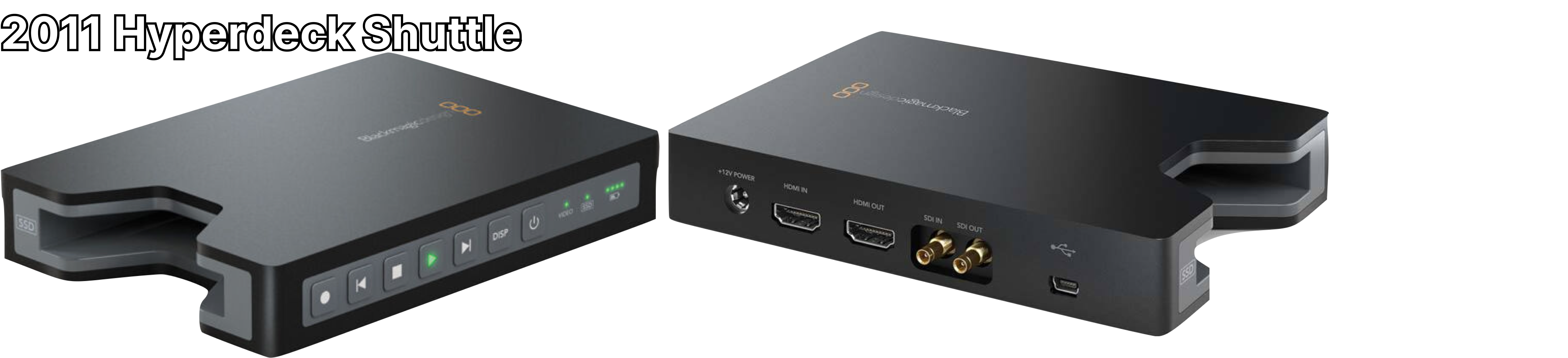

Hyperdeck

Schematics

Expand to see product diagrams.

Model Name	Media	Video Input	Video Output	Audio Connectors	Record Formats	Codecs	Reference In / Timecode	Release Year	Introductory Price	Last Known Price/Status

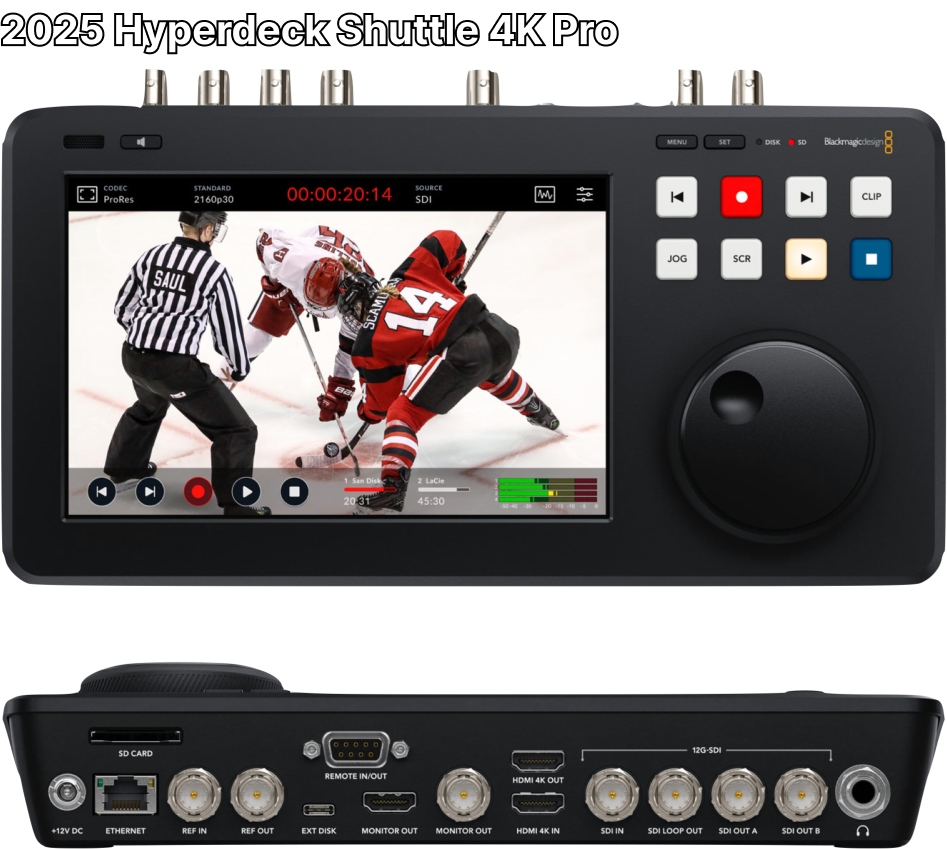

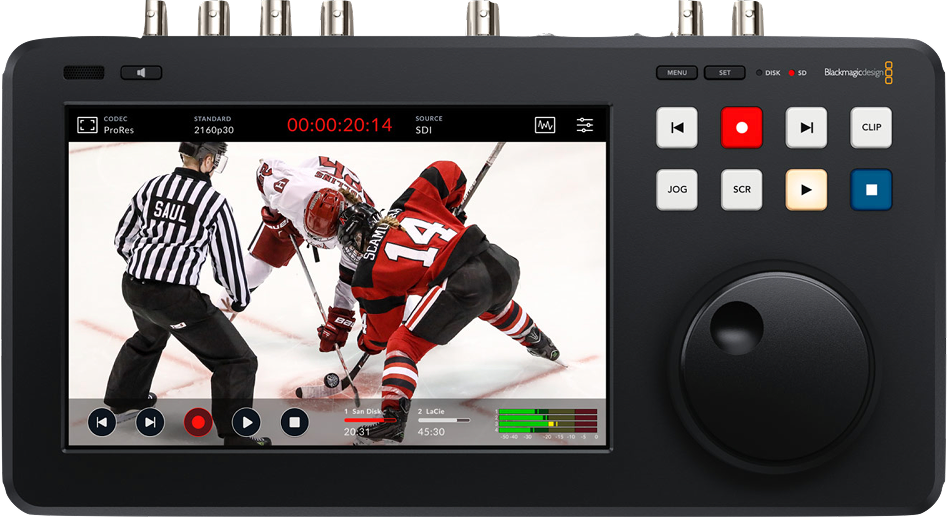

Hyperdeck Shuttle 4K Pro	1 x SD card slot Slot for optional M.2 PCIe NVMe card for cache 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.	1 x 12G BNC 1 x HDMI 2.0	1 x HDMI 2.0 Monitor 1 x HDMI 2.0 1 x 12G BNC Loop 1 x 12G Out A (Fill) 1 x 12G Out B (Key)	1 x 6.35 mm headphone jack	Expand 5525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.	1 x BNC In, Tri-Sync or Black Burst	2025	$1,495

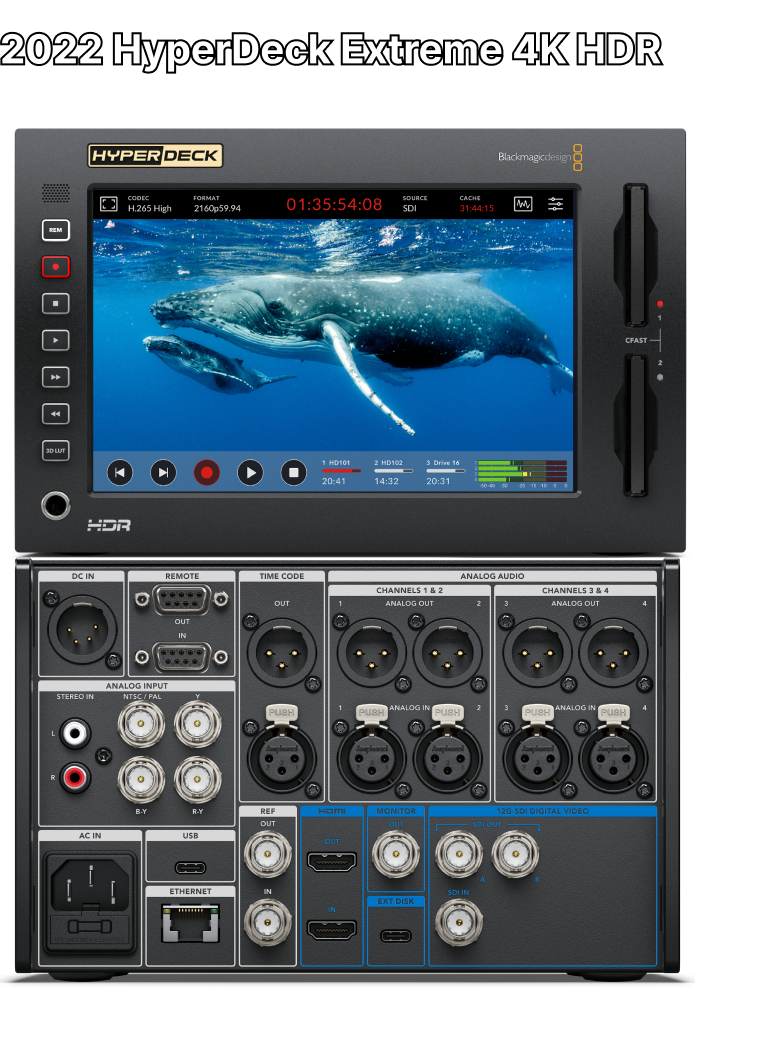

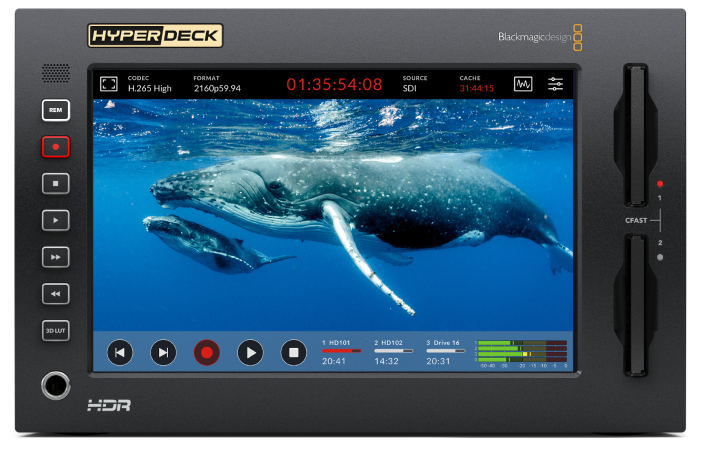

Hyperdeck 4K Extreme HDR	2 x CFAST 2.0	1 x 12G BNC 1 x Component YUV on 3 BNCs 1 x Composite NTSC/PAL 1 x HDMI 2.0	2 x 12G BNC 1 x 3G BNC Monitor 1 x HDMI 2.0 1 x USB-C 3.1 Gen 2 expansion port for external recording	4 x XLR In 4 x XLR Out 2 x RCA In	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst 1 x XLR in and 1 x XLR out for Timecode	2022	$2995	$2995

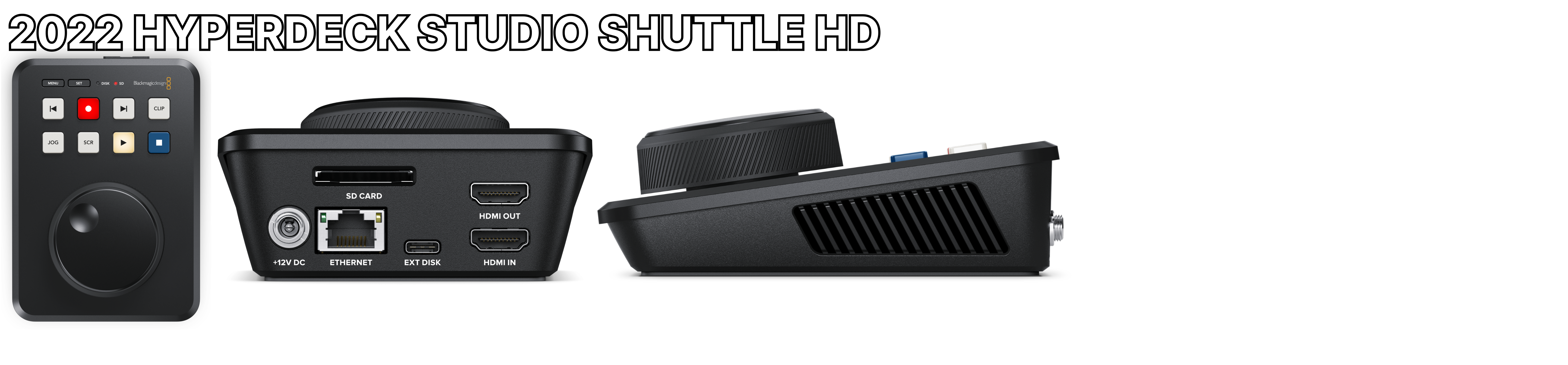

Hyperdeck Shuttle HD	2 x SD card slot	1 x HDMI 2.0	1 x HDMI 2.0 1 x USB-C 3.0 expansion port	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps	None	2022	$495	$495

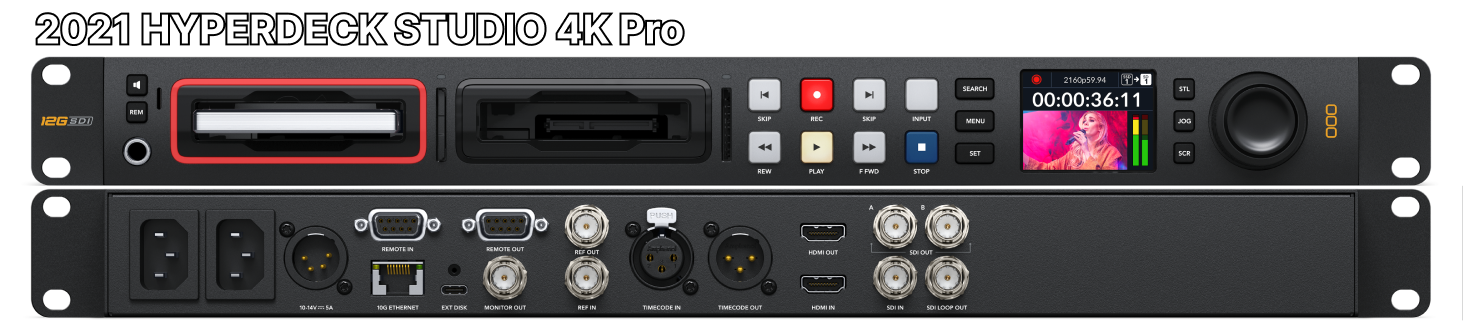

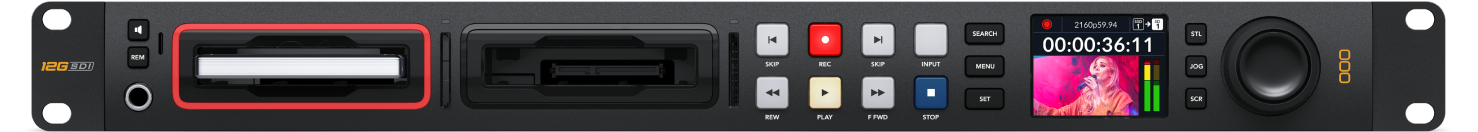

HyperDeck Studio 4K Pro	2 x 2.5 inch disc slots 2 x SD card slots	1 x 12G BNC 1 x HDMI 2.0	2 x 12G BNC 1 x 12G BNC Loop 1 x 3G BNC Monitor 1 x HDMI 2.0 1 x USB-C 3.0 expansion port	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 SDI 4:2:2 10‑bit, H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst In and Out 1 x XLR in and 1 x XLR out for Timecode	2021	$1,595	$1,595

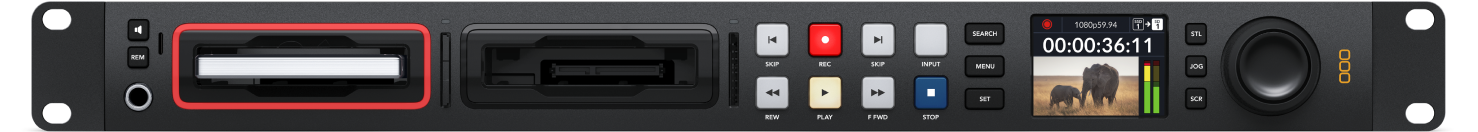

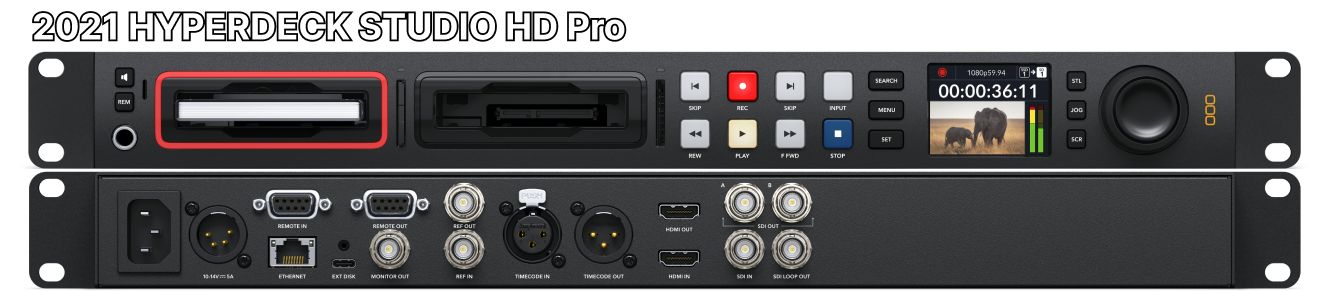

HyperDeck Studio HD Pro	2 x 2.5 inch disc slots 2 x SD card slots	1 x 6G BNC 1 x HDMI 2.0	2 x 6G BNC 1 x 6G BNC Loop 1 x 3G BNC Monitor 1 x HDMI 2.0 1 x USB-C 3.0 expansion port	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst In and Out 1 x XLR in and 1 x XLR out for Timecode	2021	$995	$995

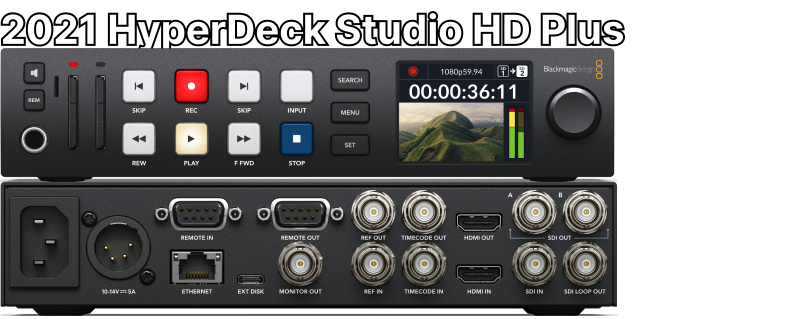

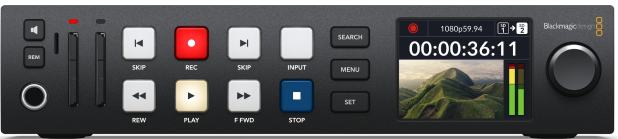

HyperDeck Studio HD Plus	2 x SD card slots	1 x 6G BNC 1 x HDMI 2.0	2 x 6G BNC 1 x 6G BNC Loop 1 x 3G BNC Monitor 1 x HDMI 2.0 1 x USB-C 3.0 expansion port	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst In and Out 1 x BNC in and 1 x BNC out for Timecode	2021	$695	$695

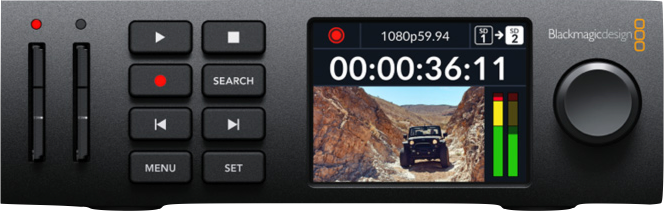

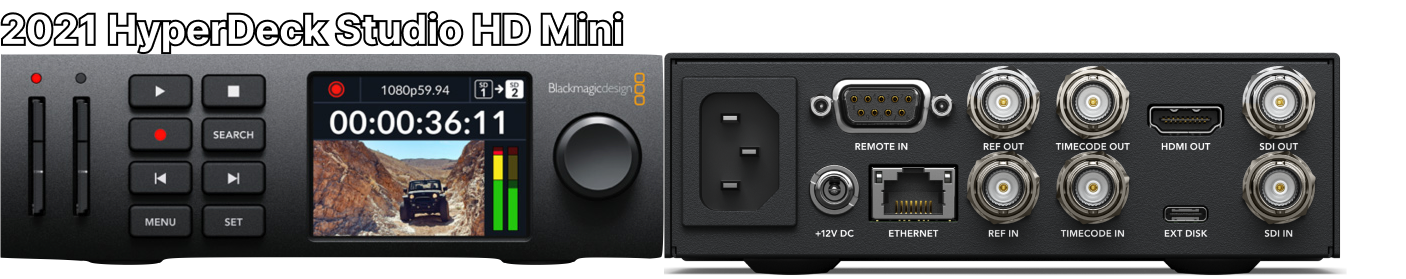

HyperDeck Studio HD Mini	2 x SD card slots	1 x 3G BNC	1 x 3G BNC 1 x HDMI 1 x USB-C 3.0 expansion port	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst In and Out 1 x BNC in and 1 x BNC out for Timecode	2021	$495	$495

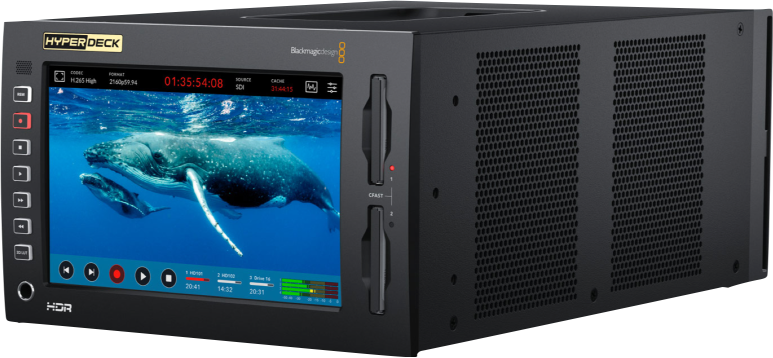

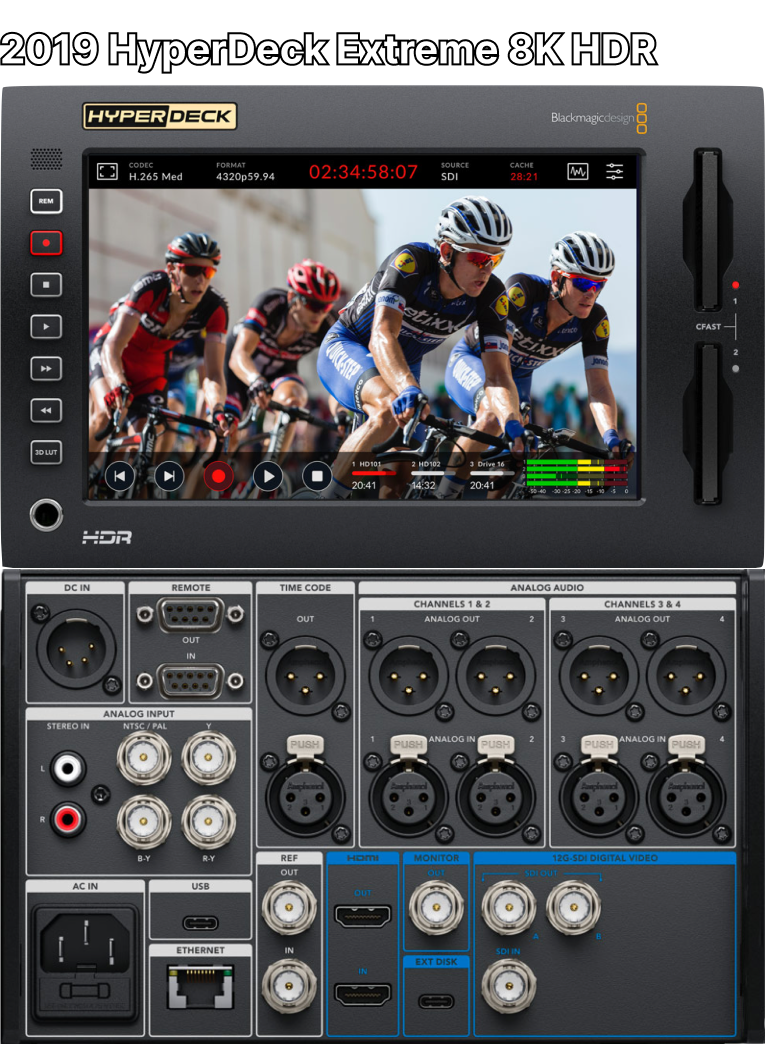

Hyperdeck 8K Extreme HDR	2 x CFAST 2.0	4 x 12G BNC (Quad-link up to 8K) 1 x Component YUV on 3 BNCs 1 x Composite NTSC/PAL 1 x HDMI 2.0	5 x (12G-SDI A,B,C,D 1 x 3G BNC Monitor 1 x HDMI 2.0 1 x USB-C 3.1 Gen 2 expansion port for external recording	4 x XLR In 4 x XLR Out 2 x RCA In	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI	Expand ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60	Tri-Sync or Black Burst 1 x XLR in and 1 x XLR out for Timecode	2019	$4995	$4995

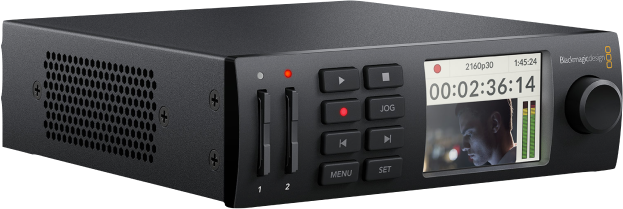

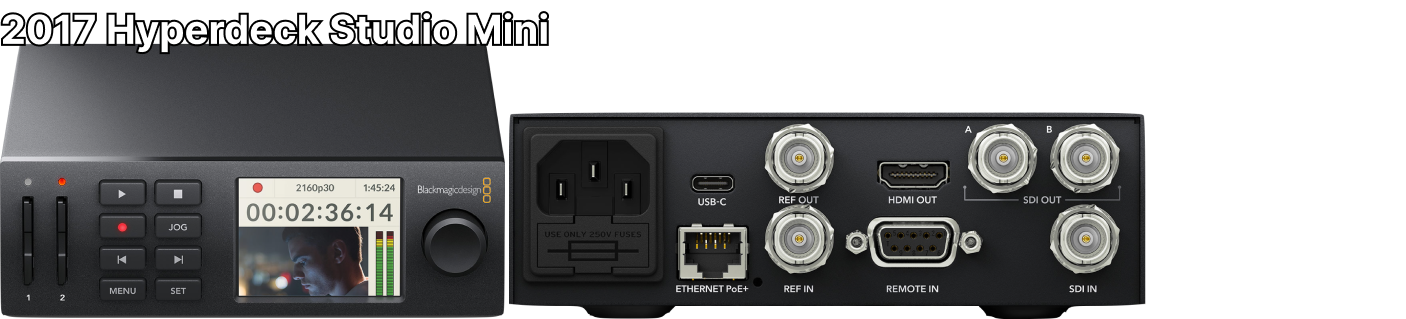

Hyperdeck Studio Mini	2 x SD card slots	1 x 6G BNC	2 x 6G BNC 1 x HDMI type A	None	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30	Expand DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF. ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime. ProRes 4444 QuickTime in HD for fill and key playback, H.264 in 720p and 1080p.	Blackburst or Tri-Sync In and Out	2017	$695	Discontinued

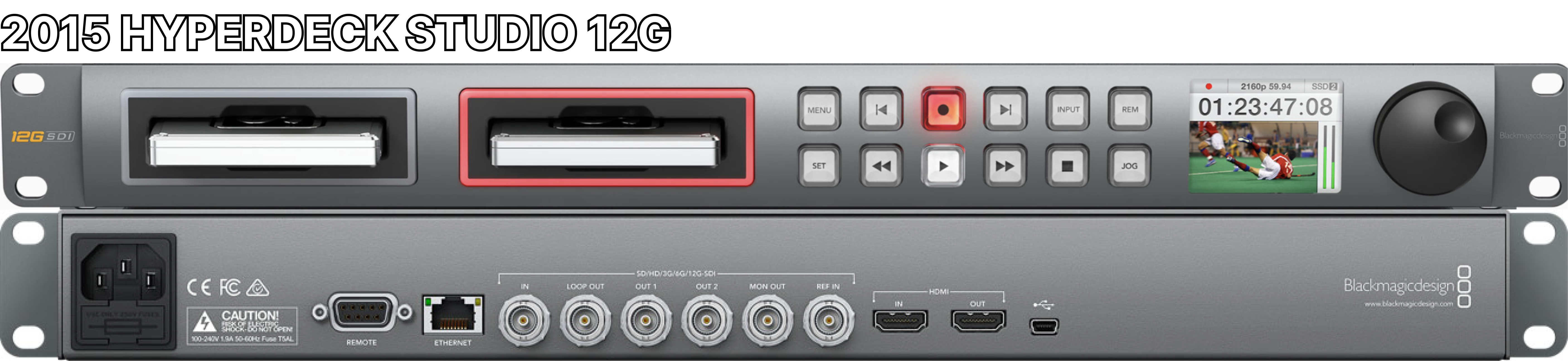

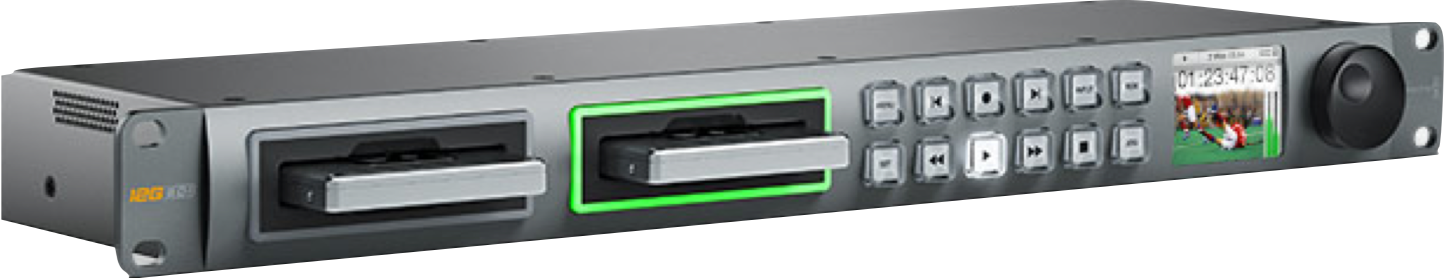

Hyperdeck Studio 12G	2 x 2.5" SATA 6Gb/s	1 x 12G BNC 1 x HDMI 2.0 type A	2 x 12G BNC 1 x 12G BNC Monitor 1 x SD/HD BNC Loop 1 x HDMI 2.0 type A	None	Expand 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60. 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60.	Expand Uncompressed QuickTime, Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60	Blackburst or Tri-Sync	2015	$2495	Discontinued

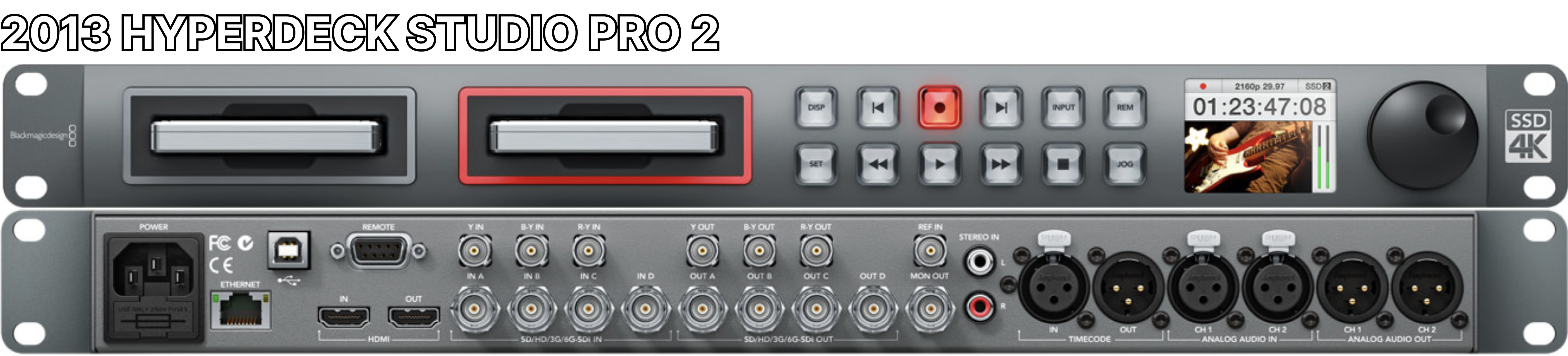

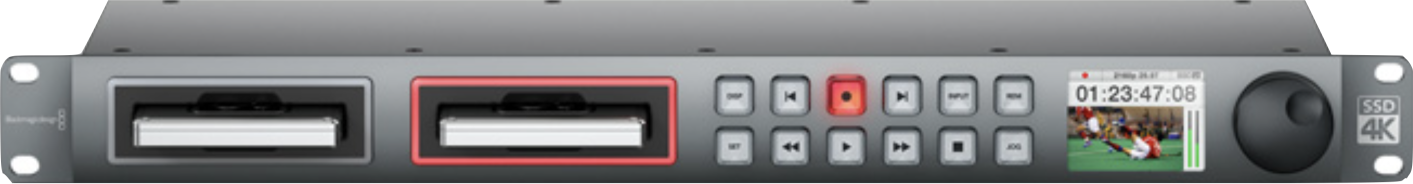

Hyperdeck Studio Pro 2	2 x 2.5" SATA 3 Gb/s	1 x 6G BNC (A) 2 x 3G BNC (B) 2 x 1.5G (HD) BNC (C & D) Can use in single-link 6G (A), dual-link 3G (A + B), or quad-link 1.5G HD-SDI (A + B + C +D) 1 x Y, B-Y, R-Y 1 x HDMI 4K type A	1 x 6G BNC (A) 2 x 3G BNC (B) 2 x 1.5G (HD) BNC (C & D) Can use in single-link 6G (A), dual-link 3G (A + B), or quad-link 1.5G HD-SDI (A + B + C +D) 1 x 1.5G HD-SDI Monitor 1 x Y, B-Y, R-Y 1 x HDMI 4K type A	2 x XLR In 2 x RCA In 2 x XLR Out	Expand 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30	Expand Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60	Blackburst or Tri-Sync 1 x XLR in and 1 x XLR out for Timecode	2013	$1995	Discontinued

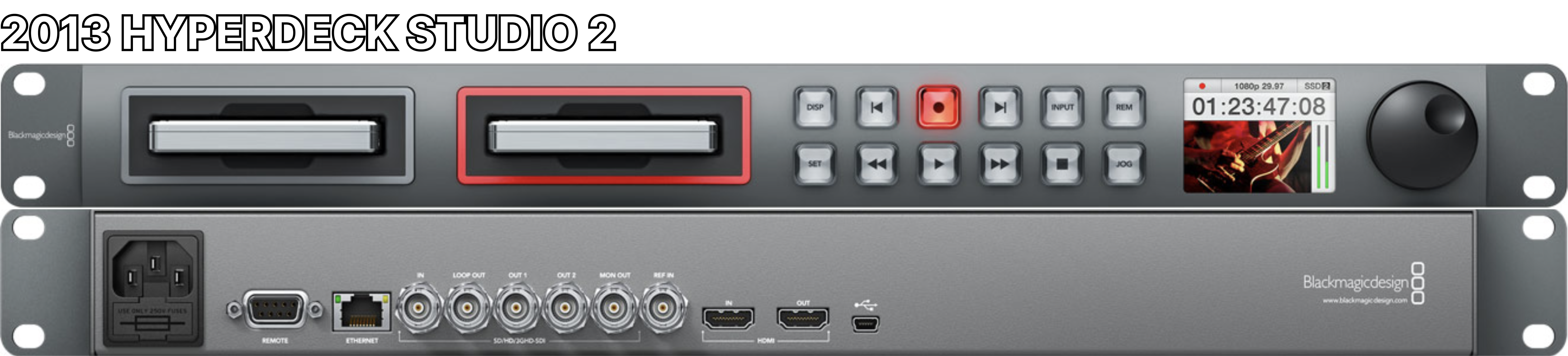

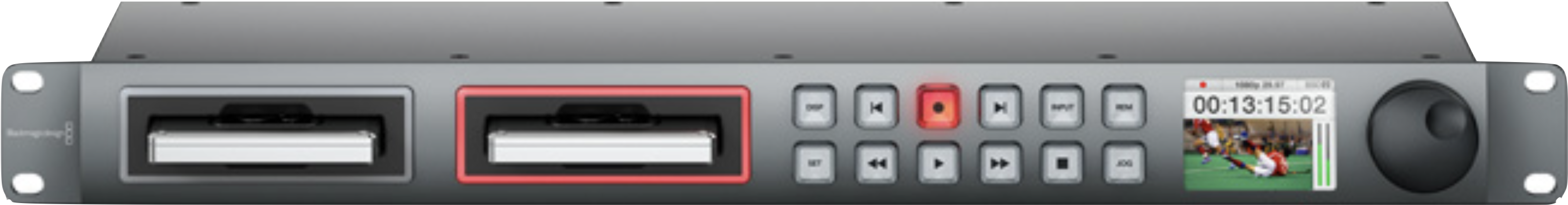

Hyperdeck Studio 2	2 x 2.5" SATA 3 Gb/s	\\warning "3G" BNCs are locked to HD-SDI maximum\\ 1 x “3G” BNC 1 x HDMI type A	2 x "3G" BNC Loop Out 1 x "3G" Monitor Out 1 x "3G" BNC Loop Out 1 x HDMI type A	None	Expand 525i59.94 NTSC, 625i50 PAL720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60	Expand Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF up to 1080i60	Blackburst or Tri-Sync	2013	$995	Discontinued

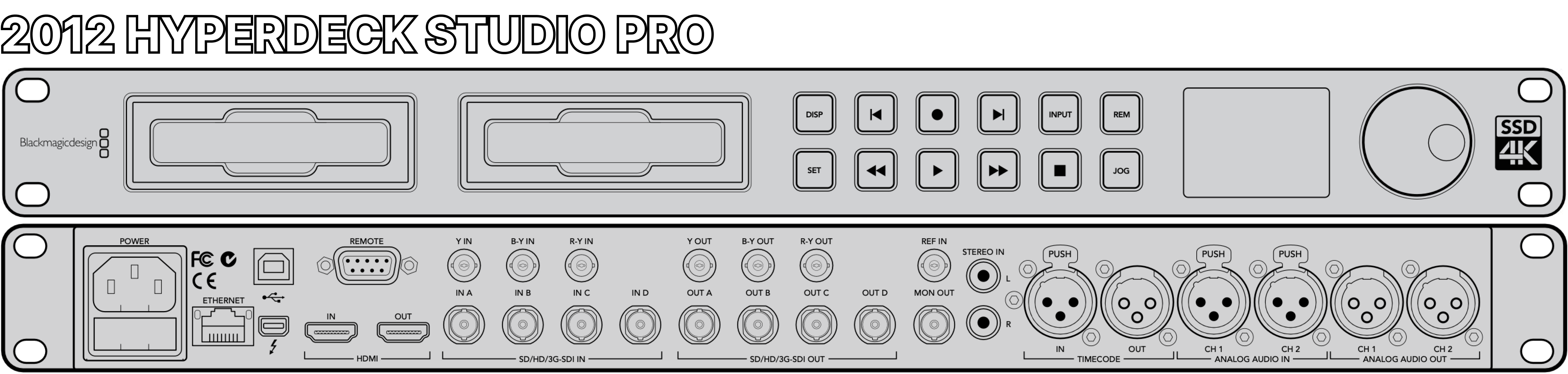

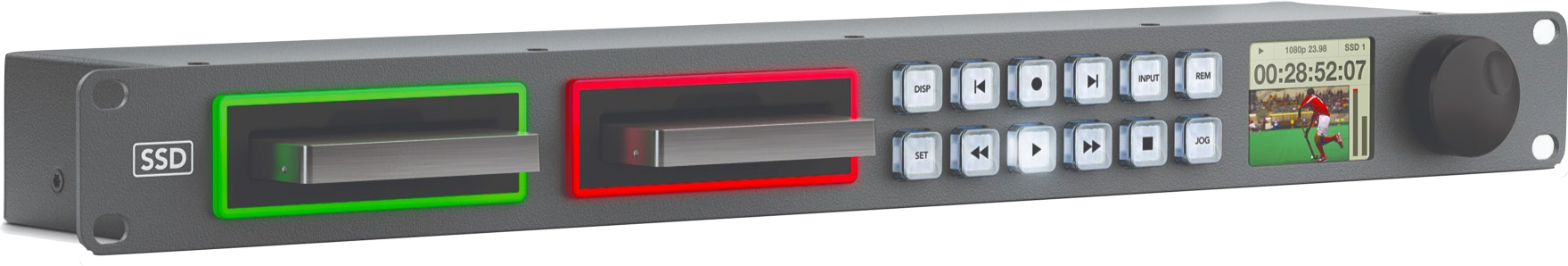

HyperDeck Studio Pro	2 x 2.5" SATA 6Gb/s	4 x 3G BNC 1 x Component YUV on 3 BNCs 1 x HDMI type A	4 x 3G BNC 1 x 3G BNC Monitor 1 x Component YUV on 3 BNCs 1 x HDMI type A	2 x XLR In 2 x RCA In 2x XLR Out	Expand 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 With 4K Update: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30	Expand Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF	Blackburst or Tri-Sync	2012	$1, 995	Discontinued
HyperDeck Shuttle 2	1 x 2.5" SATA 3Gb/s	1 x HD-SDI DIN 1.0/2.3) 1 x HDMI 1.3	1 x HD-SDI DIN 1.0/2.3 1 x HDMI 1.3	None	Expand 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30	Expand Uncompressed 10-bit QuickTime Apple ProRes 422 (HQ) QuickTime Avid DNxHD 220 Mb/s QuickTime Avid DNxHD 220 Mb/s MXF	No	2012	$345	Discontinued

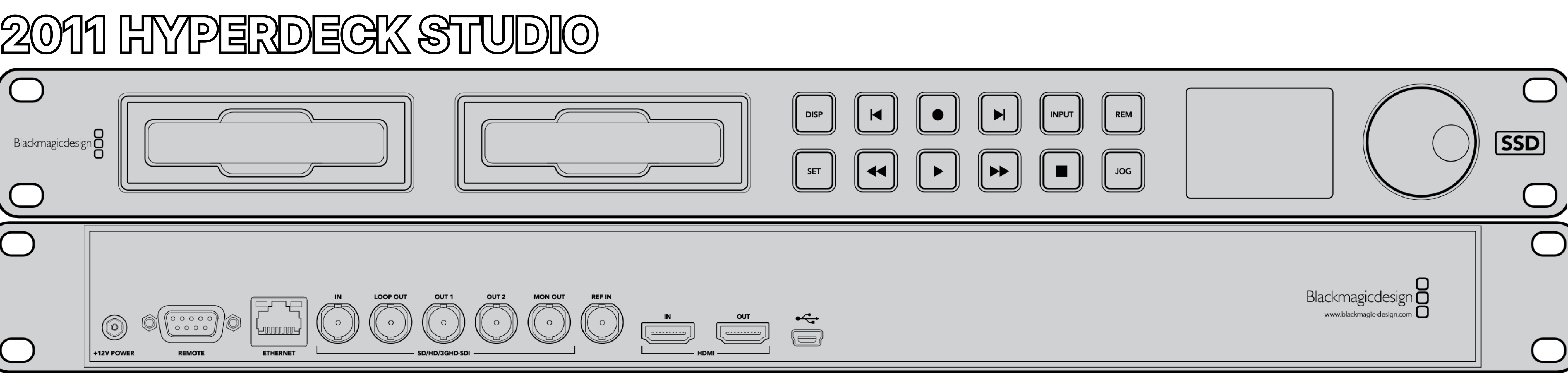

HyperDeck Studio	2 x 2.5" SATA 3Gb/s	\\warning "3G" BNCs are locked to HD-SDI maximum\\ 1 x 3G BNC 1 x HDMI 1.3	2 x 3G BNC 1 x 3G BNC Loop 1 x 3G BNC Monitor 1 x HDMI 1.3	None	Expand 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30	Expand Uncompressed 10-bit QuickTime Apple ProRes 422 (HQ) QuickTime Avid DNxHD 220 Mb/s QuickTime Avid DNxHD 220 Mb/s MXF	Yes	2011	$995	Discontinued
